開關選擇24小時循環定時器芯片，定時模式多樣，睡眠功耗低，低至5ua以下。工作電壓范圍

寬，定時IC工作電壓2.4V-5.5V。有9種不同的循環定時模式。定時時間到自動停止工作，自動開

始工作，使用方便，可設定時間為：

                                                                                2小時ON~ 22小時OFF

                                                                                4小時ON~ 4小時OFF

                                                                                4小時ON~ 20小時OFF

                                                                                6小時ON~ 6小時OFF

                                                                                6小時ON~ 18小時OFF

                                                                                8小時ON~ 8小時OFF

                                                                                8小時ON~ 16小時OFF

                                                                               10小時ON~ 14小時OFF

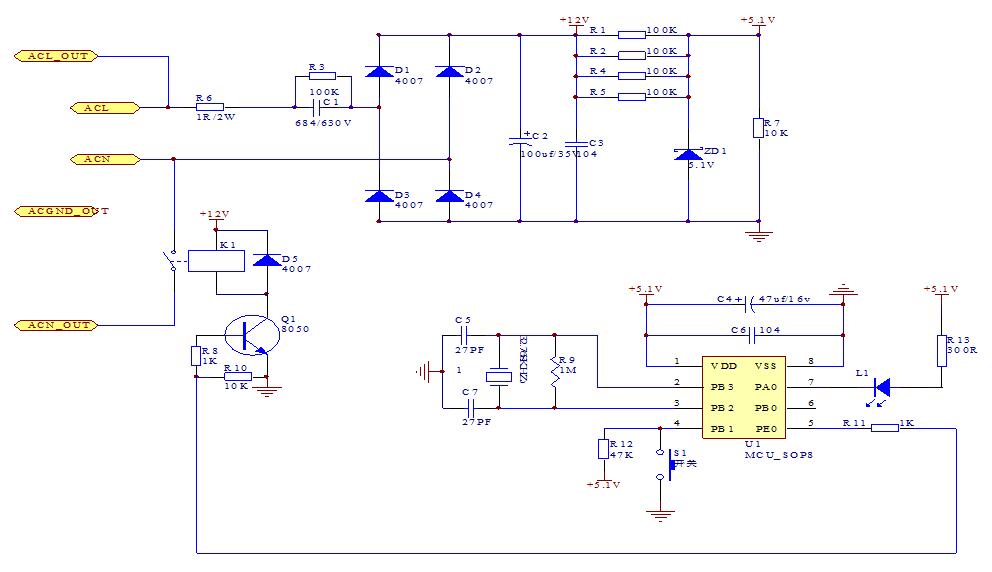

         定時IC芯片上電后，如果晶振不起振，芯片不能工作。時鐘振蕩采用32.768KHZ晶體振蕩，計

時精準，無誤差。定時芯片用IO來選擇定時模式，當某IO接通地時，工作為對應的定時時間。
